PRO 540

SKU: PRO 540

1.371,00 IVA 22% esclusa

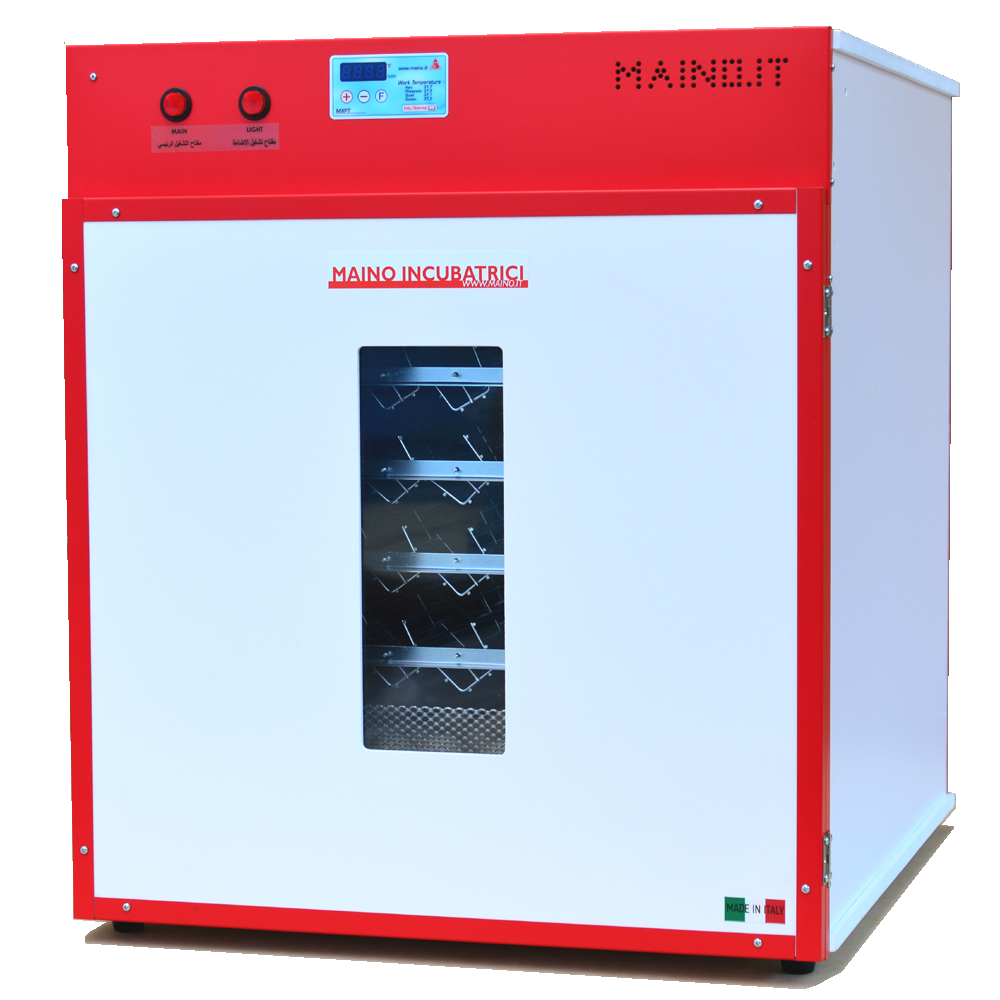

Model PRO 540 version D, structure and door made of thermal insulating PVC foam and transparent plexiglass window, temperature controller + humidity reading + digital display, automatic eggs turning, no.6 tilting trays for eggs from quail to hen e no.1 hatching basket 90 eggs. The water filling to maintain the humidity takes place from the outside with direct connection to the water mains and level managed by floater, it is not necessary to open the machine for topping up.

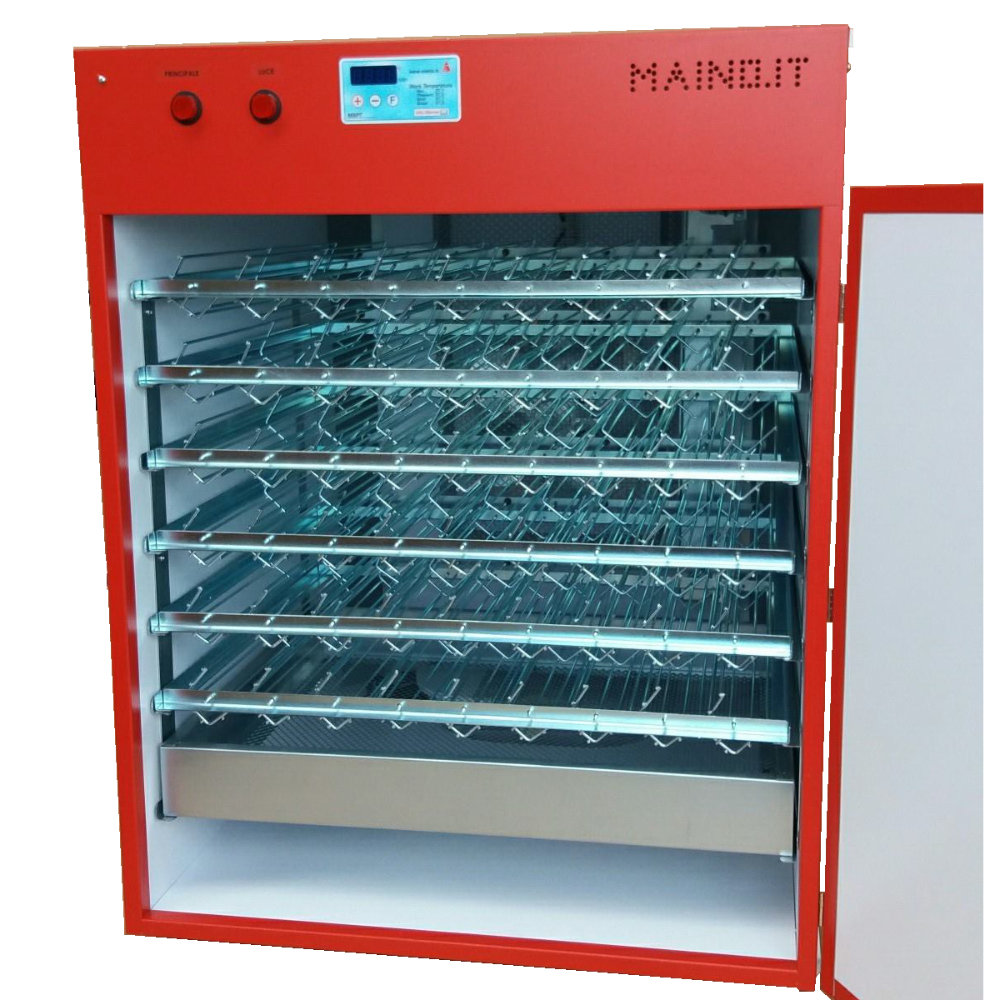

The photo shows the model with lower capacity PRO 450.

If you want changes, extra accessories or more performance you must select the following fields:

Replace the standard trays with those for goose

the goose egg tray is also suitable for giant turkey and peacock, select as many as you want instead of the quail/hen ones.

Max: 6

HATCHER ONLY

The machine is supplied only with hatching baskets and the automatic egg turning system is removed

Extra trays and baskets

It adds one or more extra goose-turkey-peacock traysMax: 6

It adds one or more extra trays from quail to henMax: 6

Replace the standard trays with those for emu

the emu egg tray is also suitable for rhea eggs.

  • By confirming this choice, the machine is configured with a different trays support system, the egg turning system is replaced and it is supplied with 2 trays for emu/rhea eggs

Replace the standard trays with those for ostrich

  • By confirming this choice, the machine is configured with a different trays support system, the egg turning system is replaced and it is supplied with 2 trays for ostrich eggs.

Hatching basket Ostrich - Emu

Calibration probe

  • RTD200 Termometro LCD di precisione

    Precision thermometer - Sample thermometer necessary for the calibration of the temperature probe, whenever necessary (instructions in the machine user manual).

PRO Configuration

ENVIRONMENTAL SANITIZER

Totale prodotto

Totale opzioni

Somma globale

  • Incubator or hatcher / or both, with dynamic heat distribution by means of a fan.
  • Structure and door made of thermal insulating PVC foam Class A in white color, obtained from a flat panel machined with CNC machinery.
  • Front control panel and structure profiles in plastic coated metal with high corrosion resistance
    • (the color of the front and the profile changes according to stock availability between red, yellow, green and white – the color cannot be selected).
  • Large transparent plexiglass inspection window obtained in the door.
  • Automated tilting system with servo-motor for automatic eggs turning.
  • No.6 metal eggs turning trays, standard for all eggs with dimension from quail to hen.
    • You can configure the type of incubation trays by selecting them (standard are from quail to hen, the selection replaces them with those for goose-peacock-giant turkey in the quantity of your choice;
      • Additional trays can be purchased as extra accessories.
    • Or with two trays for Emu/Rhea (it also modifies the eggs turning system and removes the hatching basket);
    • Or with two trays for Ostrich (it also modifies the eggs turning system and removes the hatching basket).
  • No.1 fully removable hatching basket in wire mesh, to hatch the eggs (90 eggs);
    • If the machine is used with all the eggs loaded in a single solution, you must select the additional optional baskets.
    • If the machine is used for Emu-Rhea-Ostrich eggs, you must select the appropriate optional basket.
  • PID micro-computer controller (version D) + digital technology unified sensor for temperature/humidity + temperature management + humidity reading + digital display + minimum and maximum alarms.
    • If you also want automatic humidification, you must select the proper option in the PRO performance increase module.
  • Manual humidity adjustment.
  • Full protection of electrical and mechanical parts.
  • Power from watt 646 and average consumption from 162 watt/hour.
  • Design and construction according to EEC standards.
  • Voltage Vac 230+10/-15% HZ. 50±0.5%.
  • 2 years warranty for any manufacturing defect.
  • Shipped assembled and ready for use – Weight 54 Kg.
  • User manual with images to simplify learning and with temperature and humidity table according to the type of egg.
  • Total eggs capacity:
    • Hen – Duck – Domestic Turkey: 540
    • Pheasant – Bantam: 702
    • Guinea Fowl: 648
    • Red partridge (alectoris rufa): 864
    • Quail: 864 / 2376*
    • Goose – Giant Turkey – Peacock: 294 (optional tray not included)
    • Emu – Rhea: 30
    • Ostrich: 18

* Minimum / maximum capacity of quail eggs depending on how eggs are inserted into the tray

The photo shows the model with lower capacity PRO 450.

Weight 105 kg

Product instructions
