DUC 540 + DUX 294

SKU: DUC 540 + DUX 294

Original price was: 1.746,00€.Current price is: 1.397,00€. IVA 22% esclusa

Incubator and Hatcher kit composed by:

Incubator DUC 540 version DU, structure and door made of thermal insulating PVC foam and transparent plexiglass window, temperature and humidity controller + digital display, automatic humidifier, automatic eggs turning, no.6 tilting trays for eggs from quail to hen.

Hatcher DUX 294 version DU, structure and door made of thermal insulating PVC foam and transparent plexiglass window, temperature and humidity controller + digital display, automatic humidifier, no.6 hatcher baskets.

If you want changes, extra accessories or more performance you must select the following fields:

DUC 540 Replace the standard trays with those for goose

the goose egg tray is also suitable for giant turkey and peacock, select as many as you want instead of the quail/hen ones.

Goose trays *

Max: 6

DUC 540 Extra trays

Extra tray goose-turkey-peacock * 50,00

It adds one or more extra goose-turkey-peacock traysMax: 6

Extra tray quail>hen * 50,00

It adds one or more extra trays from quail to henMax: 6

Calibration probe

  • RTD200 Termometro LCD di precisione

    Precision thermometer - Sample thermometer necessary for the calibration of the temperature probe, whenever necessary (instructions in the machine user manual).

ENVIRONMENTAL SANITIZER

Totale prodotto

Totale opzioni

Somma globale

KIT INCUBATOR AND HATCHER COMPOSED BY:

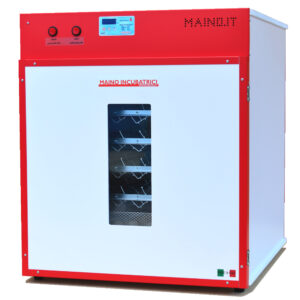

INCUBATOR DUC 540:

  • Dynamic heat distribution by means of a fan.
  • Structure and door made of thermal insulating PVC foam Class A in white color, obtained from a flat panel machined with CNC machinery.
  • Front control panel and structure profiles in plastic coated metal with high corrosion resistance
    (the color of the front and the profile changes according to stock availability between red, yellow, green and white – the color cannot be selected).
  • Large transparent plexiglass inspection window obtained in the door.
  • Automated tilting system with servo-motor for automatic eggs turning.
  • No.6 metal eggs turning trays, standard for all eggs with dimension from quail to hen.
    • You can configure the type of incubation trays by selecting them (standard are from quail to hen, the selection replaces them with those for goose-peacock-giant turkey in the quantity of your choice;
      • Additional trays can be purchased as extra accessories.
  • PID micro-computer controller (version DU) + digital technology unified sensor for temperature/humidity + temperature and humidity management + digital display + minimum and maximum alarms.
  • Integrated humidification tank with direct connection to water source/network.
  • Integrated automatic humidifier module.
  • Automatic filling of the humidification tank with floater.
  • Full protection of electrical and mechanical parts.
  • Power from watt 646 and average consumption from 162 watt/hour.
  • Design and construction according to EEC standards.
  • Voltage Vac 230+10/-15% HZ. 50±0.5%.
  • 2 years warranty for any manufacturing defect.
  • Shipped assembled and ready for use – Weight 54 Kg.
  • User manual with images to simplify learning and with temperature and humidity table according to the type of egg.
  • Total eggs capacity:
    • Hen – Duck – Domestic Turkey: 540
    • Pheasant – Bantam: 702
    • Guinea Fowl: 648
    • Red partridge (alectoris rufa): 732
    • Quail: 864 / 2376*
    • Goose – Giant Turkey – Peacock: 294 (optional tray not included)

* Minimum / maximum capacity of quail eggs depending on how eggs are inserted into the tray.



Hatcher DUX 294:

  • Dynamic heat distribution by means of a fan.
  • Structure and door made of thermal insulating PVC foam Class A in white color, obtained from a flat panel machined with CNC machinery and profiled in aluminum and steel.
  • Large transparent plexiglass inspection window obtained in the door.
  • N. 6 fully removable hatching baskets in wire mesh.
  • PID micro-computer controller (version DU) + digital technology unified sensor for temperature/humidity + temperature and humidity management + digital display + minimum and maximum alarms.
  • Automatic humidity adjustment with water automatic humidifier, the water is filled in the 5 liters tank from the outside without the need to open the door.
  • Full protection of electrical and mechanical parts.
  • Power from watt 320 and average consumption from 80 watt/hour.
  • Design and construction according to EEC standards.
  • Voltage Vac 230+10/-15% HZ. 50±0.5%.
  • 2 years warranty for any manufacturing defect.
  • Shipped assembled and ready for use – Weight 28 Kg.
  • User manual with images to simplify learning and with temperature and humidity table according to the type of egg.
  • Total eggs capacity:
    • Hen – Duck – Domestic Turkey: 294
    • Pheasant – Bantam: 378
    • Guinea Fowl: 336
    • Red partridge (alectoris rufa): 432
    • Quail: 462
    • Goose – Giant Turkey – Peacock: 150
Weight 265 kg

Product instructions
