SKU: Mini PRO 98-1 Categories: ,

Mini PRO 70

SKU: Mini PRO 98-1

470,40 IVA 22% inclusa

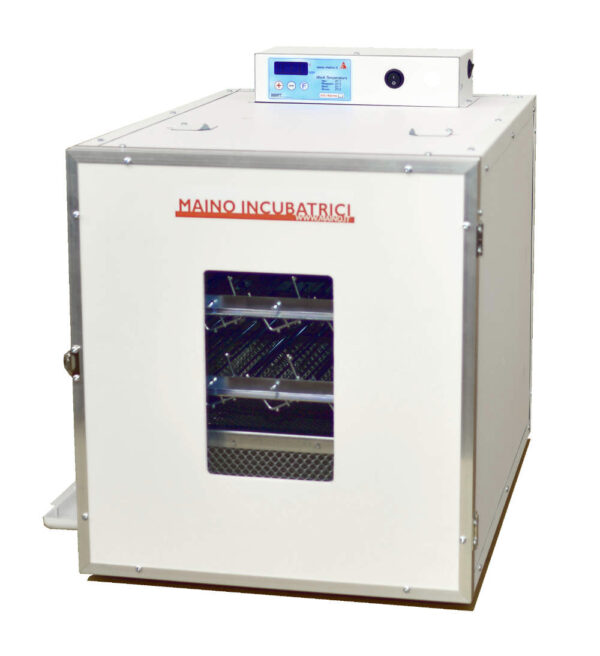

Basic version of Mini PRO 70 model, structure and door made of thermal insulating expanded PVC and transparent plexiglass window, temperature controller + humidity reading + digital display, automatic eggs turning, no.2 tilting trays for eggs from quail to hen e no.1 hatching basket. The water filling to maintain the humidity takes place from the outside, it is not necessary to open the machine for topping up.

If you want more performance you must select the following fields

La selezione, sostituisce il cassetto quaglia-gallina, con quello per oca-tacchino-pavone.

Cassetti e cestelli extra

  • Aggiunge un cestello Necessario se la macchina viene utilizzata caricando l'intera capacità in una sola volta.

  • Aggiunge un cassetto supplementare per oca-tacchino-pavone oltre a quelli già sceltiMax: 2

  • Aggiunge un cassetto supplementare da quaglia a gallina oltre a quelli già scelti

ENVIRONMENTAL SANITIZER

Ozone generator for automated environmental sanitation up to 90 cubic meters in the absence of people. Even low-intensity sanitation 24 hours a day up to 270 cubic meters in the presence of people, eggs and animals (scientific attestation of 99% reduction in the chances of transmission of infections).

Calibration probe

  • RTD200 Termometro LCD di precisione

    Precision thermometer - Sample thermometer necessary for the calibration of the temperature probe, whenever necessary (instructions in the machine user manual).

Mini PRO CONFIGURATION

It enables the superior DU function which adds two more components; the electronic humidity control board and the automatic humidifier.

Spare membrane for humidifier (consumable part) if purchased now with the machine, it allows you to save on transport costs.

Totale prodotto

Totale opzioni

Somma globale

  • Incubator or hatcher / or both, with dynamic heat distribution by means of a fan.
  • Structure and door made of thermal insulating PVC foam Class A in white color, obtained from a flat panel machined with CNC machinery and profiled in aluminum and steel.
  • Large transparent plexiglass inspection window obtained in the door.
  • Automated tilting system with servo-motor for automatic eggs turning.

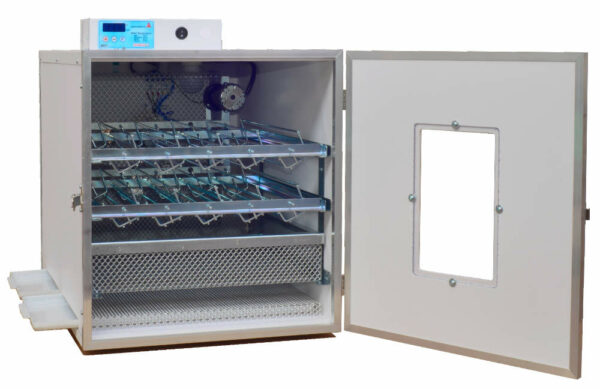

  • No.2 metal eggs turning trays, standard for all eggs with dimension from quail to hen.
    • You can configure the type of incubation trays by selecting them (standard are from quail to hen), the selection replaces them with those for goose-peacock-giant turkey.
    • Or you can also add one or two more as an option.
  • No.1 fully removable hatching basket in wire mesh, to hatch the eggs;
    • If the machine is used with all the eggs loaded in a single solution, you must select an additional optional basket.
  • PID micro-computer controller (version D) with unified digital temperature and humidity sensor and minimum / maximum alarms, which reads and maintains the Temperature and also reads the Relative Humidity.
    • If you want more performance, simply select the available option.

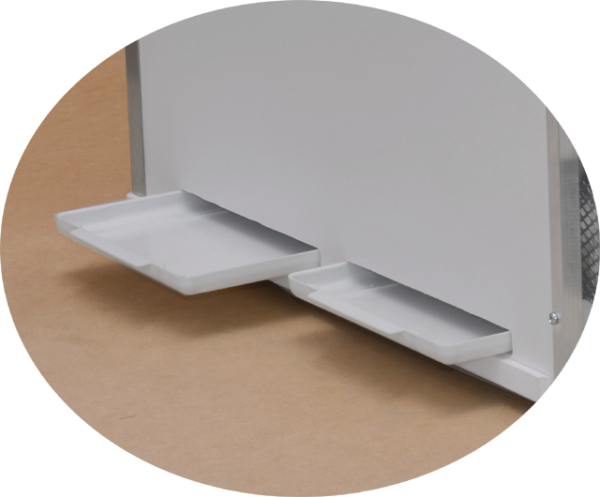

  • Manual humidity adjustment with extractable water trays without the need to open the door.
  • The water is filled from the outside without the need to open the door.
    • A support kit with a special cap with valve, which adapts into any plastic water bottle (bottle not included), is provided with to increase the water reserve.
  • Full protection of electrical and mechanical parts.
  • Power from watt 163 and average consumption from 41 watt/hour.
  • Design and construction according to EEC standards.
  • Voltage Vac 230+10/-15% HZ. 50±0.5%.
  • 3 years warranty for any manufacturing defect.
  • Shipped assembled and ready for use – Weight 19 Kg.
  • User manual with images to simplify learning and with temperature and humidity table according to the type of egg.
  • Total eggs capacity:
    • Hen – Duck – Domestic Turkey: 70
    • Pheasant: 90
    • Guinea Fowl: 80
    • Red partridge (alectoris rufa): 100
    • Quail: 110 / 290*
    • Goose – Giant Turkey – Peacock: 35 (optional tray not included)

* Minimum / maximum capacity of quail eggs depending on how eggs are inserted into the tray.

Video tutorial start-up:

Video tutorial water load:

Weight 51 kg

Product instructions
