PIOPIO 56

SKU: PIOPIO 56

Original price was: 300,55€.Current price is: 240,44€. IVA 22% esclusa

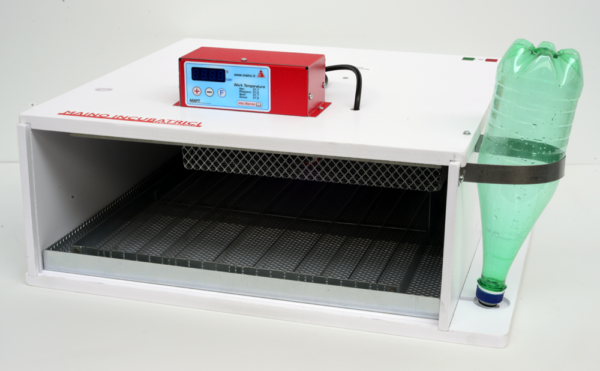

Basic version of PIOPIO 56 model with thermo-insulated structure in expanded PVC and transparent plexiglass door, only Temperature control with digital display, automatic eggs turning and adjustable turning tray for any type of egg.

The water filling to maintain the humidity takes place from the outside, it is not necessary to open the machine for topping up.

If you want more performance you must select the following fields

Calibration probe

  • RTD200 Termometro LCD di precisione

    Precision thermometer - Sample thermometer necessary for the calibration of the temperature probe, whenever necessary (instructions in the machine user manual).

PIOPIO Configuration

The selection of the following accessories allows to increase the overall performance of the machine

ENVIRONMENTAL SANITIZER

Totale prodotto

Totale opzioni

Somma globale

  • Incubator or hatcher / or both, with dynamic heat distribution by means of a fan.
  • Thermal-insulated box  in white rigid PVC and bayonet door made of perfectly transparent plexiglass.
  • Automatic eggs turning with a universal adjustable eggs turning tray for any type of eggs and mesh bottom that facilitates the eggs turning and the hatching phase.
  • PID micro-computer controller (basic version T) only Temperature control with minimum and maximum alarms – If you want more performance, simply select the available options.
  • Manual humidity adjustment with water trays already integrated into the machine structure, the water is filled from the outside without the need to open the door.
  • A support kit with a special cap with valve, which adapts into any plastic water bottle (bottle not included), is provided with to increase the water reserve.
  • Power from watt 164 and average consumption from 41 watt / hour.
  • Design and construction according to EEC standards.
  • Voltage Vac 230+10/-15% HZ. 50±0.5%.
  • Two years warranty for any manufacturing defect.
  • Shipped assembled and ready for use – Weight Kg. 9.
  • Total eggs capacity:
    • 56 Hen – Duck – Domestic Turkey
    • 64 Pheasant – Guinea Fowl – Bantam
    • 150 Quail – Grey Partridge
    • 105 Red partridge (alectoris rufa)
    • 25 Goose – Giant Turkey – Peacock



Video tutorial start-up:

Video tutorial water load:

Weight 32 kg

Product instructions

Option that replaces the basic controller T, with the more advanced controller D which has the digital temperature and humidity sensor, both parameters are displayed in the digital display, but only the temperature is controlled, if you want the machine to control the humidity you have to select also the upgrade to automatic humidification.

Option that enables the function DU that adds two other components: the electronic humidity control board and the automatic humidifier unit.

With both improvements selected, the machine becomes fully automated to control both temperature and humidity (automatic cooling and dehumidification are not included).
