BELOW YOU WILL FIND ALL THE POSSIBLE VARIANTS
OF FIXING THE PANELS ON THE POST

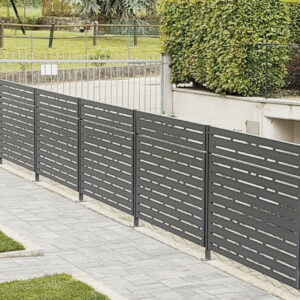

Variant 1: the posts (dark grey) previously fixed to the ground, are already prepared with through holes and the panels are fixed on them with bolts that pass through the posts from side to side. Cylindrical spacers (light grey colour) are inserted between the posts and the panels, creating a technical space between the elements. One side of the panels is perfectly smooth, while the opposite side has structural folds (see diagram below) that allow both the fixing of the panels to the posts, and the necessary rigidity.
Variant 2: The posts previously fixed to the ground, are already prepared with plates installed, the panels are fixed directly to these plates with bolts. Upon agreement upon confirmation of the order, the panels can be placed next to the posts with a minimal space to accommodate expansion (as highlighted in the example below) or you can leave a space of your choice. Both sides of the panels are smooth except for two very light structural folds (one at the bottom and one at the top) to ensure the necessary rigidity.
Variant 3: The posts (grey colour) previously fixed to the ground are already prepared with installed plates, the panels (light orange colour) are fixed to these plates with bolts, placed next to the post with a minimal space to accommodate expansions. Two additional elements (dark orange colour) are also applied which completely hide the bolts, presenting the structure in a more homogeneous way without spaces or interruptions, completely hiding the fastening systems. Covers can also be applied to the base of the posts to hide the relative fastening system.
